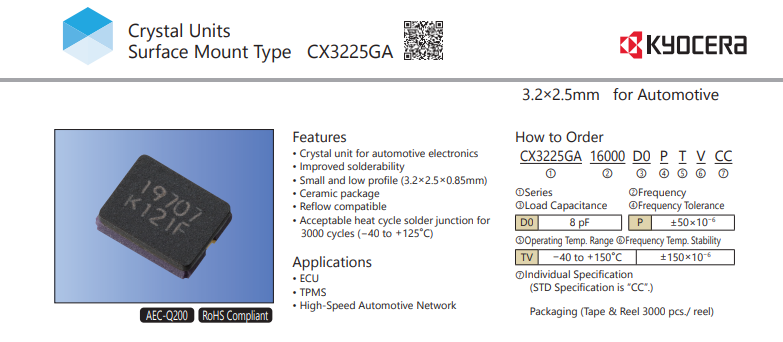

CX3225GA京瓷車規晶振無源3225晶振封裝
訂購熱線：0755-33270075
| 品牌 | 型號 | 頻率MHZ | 尺寸mm | 負載電容 |
| 京瓷KYOCERA | CX3225GA09843D0PTVZ1 | 9.84375M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA09843D0PTVTT | 9.843M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA10000D0PTVTT | 10M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA10000D0PTVZ1 | 10M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA12000D0PTVCC | 12M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA12000D0PTVZ1 | 12M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA13560D0PTVCC | 13.56M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA13560D0PTVZ1 | 13.56M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA16000D0PTVCC | 16M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA16000D0PTVZ1 | 16M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA20000D0PTVCC | 20M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA20000D0PTVZ1 | 20M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA24000D0PTVCC | 24M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA24000D0PTVZ1 | 24M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA25000D0PTVCC | 25M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA25000D0PTVZ1 | 25M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA26000D0PTVCC | 26M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA26000D0PTVZ1 | 26M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA27000D0PTVZ1 | 27M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA28636D0PTVCC | 28.636M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA28636D0PTVZ1 | 28.636M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA30000D0PTVCC | 30M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA30000D0PTVZ1 | 30M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA32000D0PTVCC | 32M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA32000D0PTVZ1 | 32M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA40000D0PTVCC | 40M | 3.2*2.5*0.95 | 8PF |
| 京瓷KYOCERA | CX3225GA40000D0PTVZ1 | 40M | 3.2*2.5*0.95 | 8PF |
- CX3225SA16000D0GTZA2車規晶振,AVX京瓷晶振
- 品牌分類： KDS晶振
晶振類型：車規級晶振
主頻：16MHz
頻率公差：±20ppm
負載電容值：8pF
工作溫度：-40——125
